概述
一、验证者添加流程概览

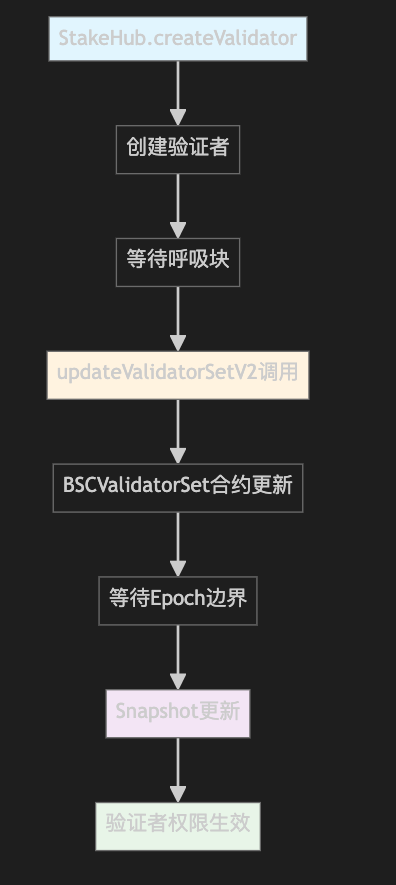

1.1 整体流程图

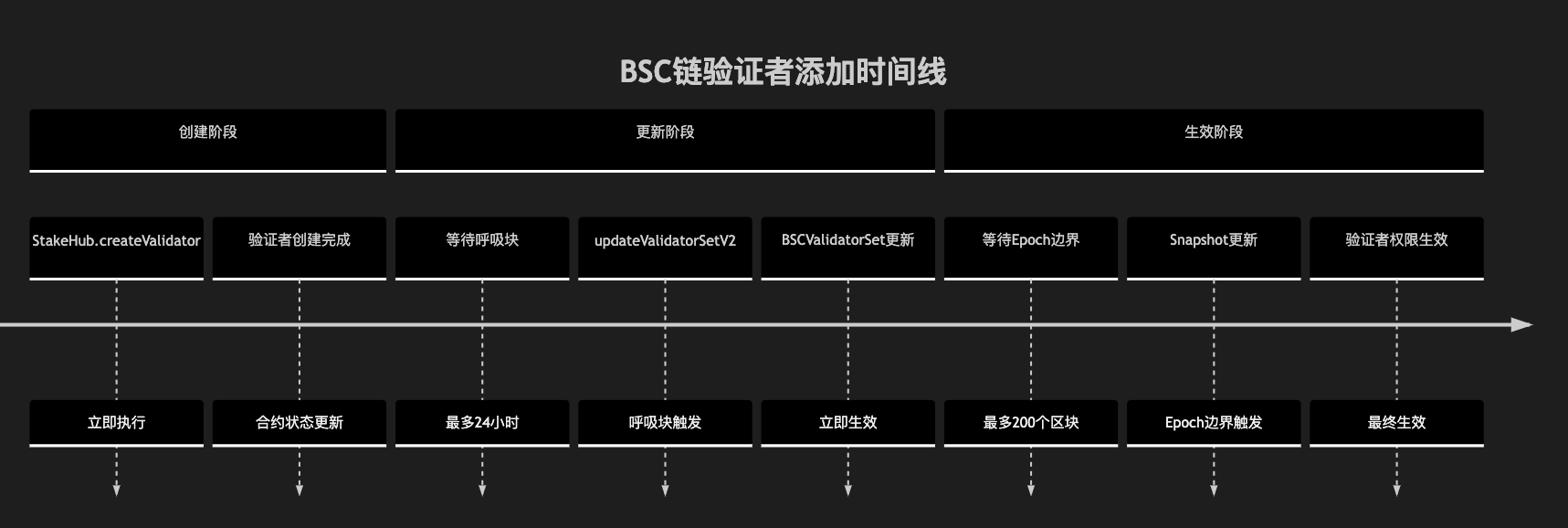

1.2 时间线图
二、详细流程分析
2.1 第一阶段：StakeHub创建验证者
2.1.1 StakeHub合约调用Go代码实现
func (vj *ValidatorJoiner) createValidator() error {fmt.Println("开始创建验证者...")// 验证配置if err := vj.validateConfig(); err != nil {return fmt.Errorf("配置验证失败: %v", err)}// 检查当前验证者数量currentCount, err := vj.getCurrentValidatorCount()if err != nil {return fmt.Errorf("获取当前验证者数量失败: %v", err)}maxValidators, err := vj.getMaxElectedValidators()if err != nil {return fmt.Errorf("获取最大验证者数量失败: %v", err)}fmt.Printf("当前验证者数量: %d, 最大验证者数量: %d\n", currentCount, maxValidators)if currentCount >= maxValidators {return fmt.Errorf("已达到最大验证者数量限制: %d", maxValidators)}// 检查最小自质押要求minDelegation, err := vj.getMinSelfDelegationBNB()if err != nil {return fmt.Errorf("获取最小自质押要求失败: %v", err)}// 解析自质押数量selfDelegationWei := new(big.Int)selfDelegationWei.SetString(vj.config.SelfDelegationBNB, 10)selfDelegationWei.Mul(selfDelegationWei, big.NewInt(1e18)) // 转换为weiif selfDelegationWei.Cmp(minDelegation) < 0 {return fmt.Errorf("自质押数量不足，需要至少 %s BNB", new(big.Float).Quo(new(big.Float).SetInt(minDelegation), new(big.Float).SetInt(big.NewInt(1e18))))}// 生成BLS签名证明fmt.Println("生成BLS签名证明...")blsProof, err := vj.generateBLSProof()if err != nil {return fmt.Errorf("生成BLS签名证明失败: %v", err)}// 准备佣金结构commission := struct {Rate uint64MaxRate uint64MaxChangeRate uint64}{Rate: vj.config.CommissionRate,MaxRate: vj.config.MaxCommissionRate,MaxChangeRate: vj.config.MaxChangeRate,}// 准备描述结构description := struct {Moniker stringIdentity stringWebsite stringDetails string}{Moniker: vj.config.Moniker,Identity: vj.config.Identity,Website: vj.config.Website,Details: vj.config.Details,}// 准备voteAddress (BLS公钥)voteAddress := common.FromHex(vj.config.BLSPublicKey)fmt.Println("验证者配置:")fmt.Printf(" 验证者地址: %s\n", vj.config.ValidatorAddress)fmt.Printf(" 名称: %s\n", vj.config.Moniker)fmt.Printf(" 佣金率: %.1f%%\n", float64(vj.config.CommissionRate)/100)fmt.Printf(" 自质押: %s BNB\n", vj.config.SelfDelegationBNB)// 检查钱包余额balance, err := vj.getBalance()if err != nil {return fmt.Errorf("获取余额失败: %v", err)}if balance.Cmp(selfDelegationWei) < 0 {return fmt.Errorf("钱包余额不足，需要 %s BNB，当前余额 %s BNB",new(big.Float).Quo(new(big.Float).SetInt(selfDelegationWei), new(big.Float).SetInt(big.NewInt(1e18))),new(big.Float).Quo(new(big.Float).SetInt(balance), new(big.Float).SetInt(big.NewInt(1e18))))}// 打包合约调用数据data, err := vj.contract.Pack("createValidator",common.HexToAddress(vj.config.ValidatorAddress),voteAddress,blsProof,commission,description,)if err != nil {return fmt.Errorf("打包createValidator调用失败: %v", err)}// 获取nonce和gas价格nonce, err := vj.getNonce()if err != nil {return fmt.Errorf("获取nonce失败: %v", err)}gasPrice, err := vj.getGasPrice()if err != nil {return fmt.Errorf("获取gas价格失败: %v", err)}// 创建交易tx := types.NewTransaction(nonce,common.HexToAddress(stakeHubAddress),selfDelegationWei,5000000, // gas limitgasPrice,data,)// 签名交易chainID, err := vj.client.ChainID(context.Background())if err != nil {return fmt.Errorf("获取链ID失败: %v", err)}signedTx, err := types.SignTx(tx, types.NewEIP155Signer(chainID), vj.privKey)if err != nil {return fmt.Errorf("签名交易失败: %v", err)}// 发送交易fmt.Println("发送交易...")err = vj.client.SendTransaction(context.Background(), signedTx)if err != nil {return fmt.Errorf("发送交易失败: %v", err)}fmt.Printf("交易已发送，交易哈希: %s\n", signedTx.Hash().Hex())fmt.Println("等待交易确认...")// 等待交易确认receipt, err := vj.waitForTransaction(signedTx.Hash())if err != nil {return fmt.Errorf("等待交易确认失败: %v", err)}if receipt.Status == 0 {// 获取交易执行失败的原因errorMsg, err := vj.getTransactionError(signedTx.Hash())if err != nil {return fmt.Errorf("获取交易执行失败原因失败: %v", err)}return fmt.Errorf("交易执行失败: %s", errorMsg)}fmt.Printf("交易已确认，区块号: %d\n", receipt.BlockNumber.Uint64())
}2.1.2 创建验证者的关键要素
- 质押金额：必须满足最小质押要求
- 公钥信息：验证者的BLS公钥
- 状态设置：初始状态为Active
- 事件记录：记录创建事件
2.2 第二阶段：呼吸块与更新BSCValidatorSet合约
2.2.1 呼吸块24小时产生一个
params/protocol_params.go

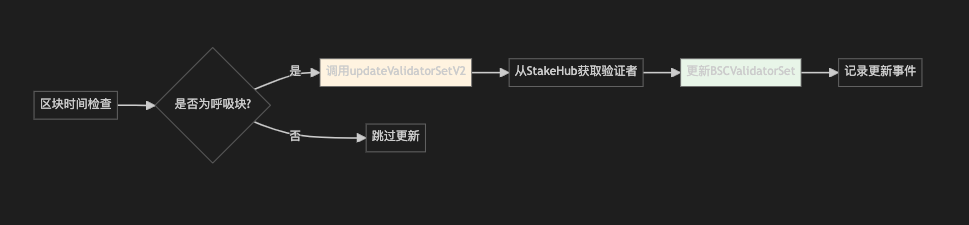

BreatheBlockInterval uint64 = 24 * 3600 // Controls the interval for updateValidatorSetV22.2.2updateValidatorSetV2调用流程
2.2.3 updateValidatorSetV2呼吸块调用更新BSCValidatorSet合约
// FinalizeAndAssemble implements consensus.Engine, ensuring no uncles are set,
// nor block rewards given, and returns the final block.
func (p *Parlia) FinalizeAndAssemble(chain consensus.ChainHeaderReader, header *types.Header, state *state.StateDB,.....// update validators every dayif p.chainConfig.IsFeynman(header.Number, header.Time) && isBreatheBlock(parent.Time, header.Time) {// we should avoid update validators in the Feynman upgrade blockif !p.chainConfig.IsOnFeynman(header.Number, parent.Time, header.Time) {if err := p.updateValidatorSetV2(state, header, cx, &body.Transactions, &receipts, nil, &header.GasUsed, true, tracer); err != nil {return nil, nil, err}}
}2.3 第四阶段：Epoch边界与Snapshot更新

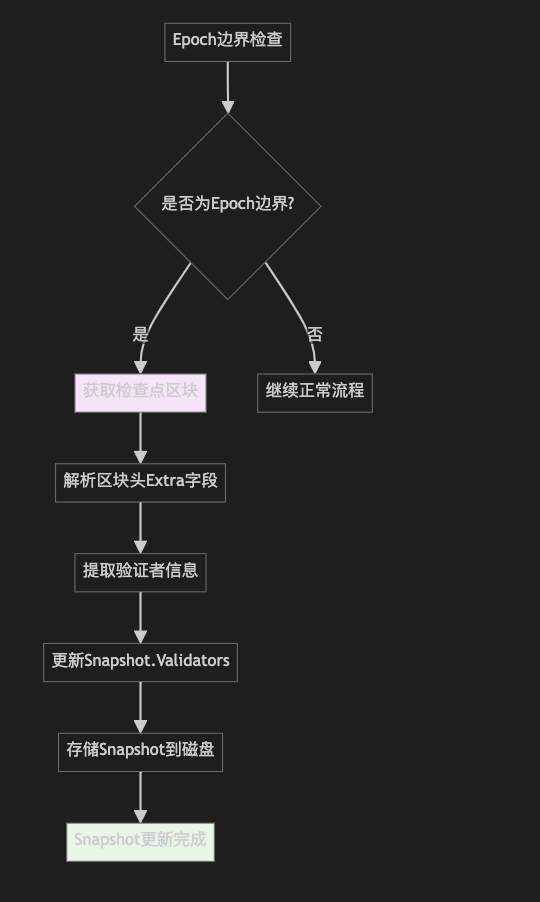

2.3.1 Snapshot更新流程
2.3.2 Snapshot更新验证者代码
判断呼吸块是否达到
Parlia.go
func (p *Parlia) prepareValidators(chain consensus.ChainHeaderReader, header *types.Header) error {epochLength, err := p.epochLength(chain, header, nil)if err != nil {return err}if header.Number.Uint64()%epochLength != 0 {return nil}newValidators, voteAddressMap, err := p.getCurrentValidators(header.ParentHash, new(big.Int).Sub(header.Number, big.NewInt(1)))if err != nil {return err}// sort validator by addresssort.Sort(validatorsAscending(newValidators))if !p.chainConfig.IsLuban(header.Number) {for _, validator := range newValidators {header.Extra = append(header.Extra, validator.Bytes()...)}} else {header.Extra = append(header.Extra, byte(len(newValidators)))if p.chainConfig.IsOnLuban(header.Number) {voteAddressMap = make(map[common.Address]*types.BLSPublicKey, len(newValidators))var zeroBlsKey types.BLSPublicKeyfor _, validator := range newValidators {voteAddressMap[validator] = &zeroBlsKey}}for _, validator := range newValidators {header.Extra = append(header.Extra, validator.Bytes()...)header.Extra = append(header.Extra, voteAddressMap[validator].Bytes()...)}}return nil
}
Parlia.go获取当前验证者
func (p *Parlia) getCurrentValidators(blockHash common.Hash, blockNum *big.Int) ([]common.Address, map[common.Address]*types.BLSPublicKey, error) {// blockblockNr := rpc.BlockNumberOrHashWithHash(blockHash, false)if !p.chainConfig.IsLuban(blockNum) {validators, err := p.getCurrentValidatorsBeforeLuban(blockHash, blockNum)return validators, nil, err}// methodmethod := "getMiningValidators"ctx, cancel := context.WithCancel(context.Background())defer cancel() // cancel when we are finished consuming integersdata, err := p.validatorSetABI.Pack(method)if err != nil {log.Error("Unable to pack tx for getMiningValidators", "error", err)return nil, nil, err}// callmsgData := (hexutil.Bytes)(data)toAddress := common.HexToAddress(systemcontracts.ValidatorContract)gas := (hexutil.Uint64)(uint64(math.MaxUint64 / 2))result, err := p.ethAPI.Call(ctx, ethapi.TransactionArgs{Gas: &gas,To: &toAddress,Data: &msgData,}, &blockNr, nil, nil)if err != nil {return nil, nil, err}var valSet []common.Addressvar voteAddrSet []types.BLSPublicKeyif err := p.validatorSetABI.UnpackIntoInterface(&[]interface{}{&valSet, &voteAddrSet}, method, result); err != nil {return nil, nil, err}voteAddrMap := make(map[common.Address]*types.BLSPublicKey, len(valSet))for i := 0; i < len(valSet); i++ {voteAddrMap[valSet[i]] = &(voteAddrSet)[i]}return valSet, voteAddrMap, nil
}三、时间延迟分析
3.1 各阶段时间延迟
StakeHub创建0分钟
呼吸块等待0-24小时
BSCValidatorSet更新0分钟
Epoch边界等待0-10分钟
Snapshot生效0分钟3.2 时间计算
| 阶段 | 时间范围 | 说明 |
|---|---|---|
| StakeHub创建 | 0分钟 | 立即执行 |
| 呼吸块等待 | 0-24小时 | 取决于创建时机 |
| BSCValidatorSet更新 | 0分钟 | 立即生效 |
| Epoch边界等待 | 0-10分钟 | 最多200个区块 |
| Snapshot生效 | 0分钟 | 立即生效 |
3.3 最坏情况分析
- 最长等待时间：24小时 + 10分钟 = 24小时10分钟
- 最短等待时间：10分钟（如果刚错过呼吸块）
- 平均等待时间：12小时 + 5分钟 = 12小时5分钟
总结
- StakeHub创建：验证者添加的起点
- 呼吸块机制：控制更新频率，确保网络稳定性
- Epoch边界：Snapshot更新的时间节点
- 实时检查：提供灵活性和即时响应能力
